Isuzu KV100 Refrigerated Truck - High Capacity Cold Transport
The Isuzu KV100 refrigerated truck is tailored for efficient refrigerated transportation with its large storage capacity. With reliable performance and precision temperature control, it ensures fresh goods remain in optimal condition during delivery.
Model: CLW5040XLCQ6
Dimensions: 5995*2260*2980/3120mm
Interior Dimensions: 4075*2060*1860/2100mm
Suspension: Mechanical Suspension/Air Suspension
Place of Origin：China
Minimum Order Quantity：1 unit
Delivery Time：7-15 working days
Transaction Mode：sea transportation

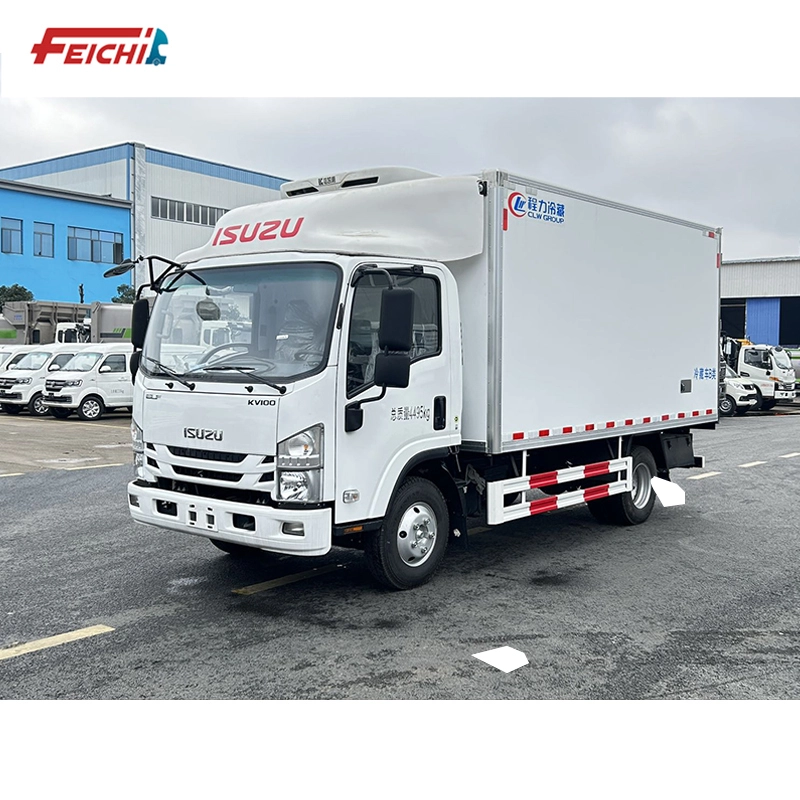

Isuzu KV100 refrigerated truck
Isuzu KV100 refrigerated truck is a cost-effective product produced by Isuzu for the urban cold chain distribution market. It has the quality genes of Japanese cars, high reliability, strong loading capacity, and low operating costs, making it the first choice for urban cold chain.
Technical Specifications
| Drive type | 4×2 |
| Wheelbase | 3360mm |
| Engine | 4KH1CN6LB Qingling Isuzu |
| Transmission | Isuzu MSB-5MT, 5 gears |
| Power/horsepower | 88KW/120 horsepower |
| Displacement | 2999ml inline four-cylinder |
| Tyre model | 7.00R16 8PR |
| Configuration | air brake, power, air conditioning, electric doors and windows, ABS |
Key Features
Professional cold chain, precise temperature control
● Manufacturing process: The box body is manufactured by vacuum adsorption and hydraulic adsorption integrated molding production line, sandwich composite bonding, and the thermal insulation performance reaches the national A-level standard.
● Box board material: The inner and outer wall panels are made of domestic high-quality fiberglass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation); the middle insulation layer is a high-performance insulation board, and the box body thickness is 8CM. The floor is made of fiberglass patterned plate, and the door side strips are made of labyrinth rubber sealing strips.
● Box board material: Cabin accessories: Aluminum alloy edging around the cabin, stainless steel corners, stainless steel door lock hinges, stainless steel door frames and hinges, energy-saving LED lighting in the cabin.
● [Refrigeration unit] Kelly refrigeration, -15°
Safety configuration: ABS braking system
faq
(2)For Inland Neighborhood Countries Of China, We Can Send Ma-Chines By Road Or Railway.
(3)For Spare Parts In Urgent Demand,We Can Send It By Dhl,Tnt,Upsor Fedex.
● Urban distribution: short-distance and high-frequency transportation of supermarket fresh food, dairy products, baked goods, etc., and flexible response to narrow roads and height and weight restrictions in urban areas.
● Cold chain logistics: temperature-controlled goods such as quick-frozen foods, pharmaceutical vaccines, flowers and green plants, -15℃ deep cold technology to ensure quality.
● Urban-rural connection: transportation of township agricultural trade and fruit and vegetable bases, wide-body cargo box + high passability design, taking into account both paved and unpaved roads.
● Custom Design: Modify trucks to meet your unique needs.
● WORLDWIDE SHIPPING: Can be exported to Africa, Europe, Middle East and other regions.
● After Sales Support: 24/7 customer service and maintenance support.
